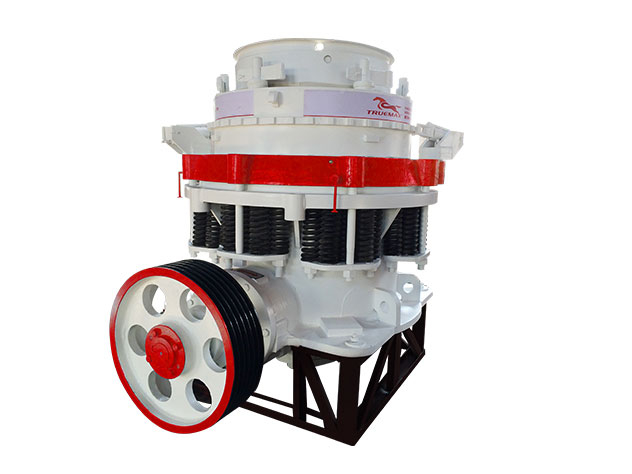

XRY series high efficient composite spring cone crusher

Availability:

PRODUCT INTRODUCTION

XRY series cone crusher adopt stable and professional technology developed by Truemax mechanical engineers, it's a new cone crusher. Compared with the traditional cone crusher, it has obvious advantages in production capacity, finished material size, service life and other aspects. Widely used in sand, aggregate and mineral industry. Suitable for medium and fine crushing operations of various ores, such as granite, limestone, quartzite and cobblestone, etc.


PRODUCTION ADVANTAGES

The main engine parts are made of high-quality steel, with reasonable structure, reliable operation and low operating cost.


The use of surface carburized spiral bevel gears achieves high torque transmission, high transmission efficiency, greatly improves product capacity, reliability and stability, and reduces operating costs.


With large crushing force and high production efficiency.


Many crushing cavity types, suitable for a wide range of product size requirement.


Adopting the principle of "more breakage and less grinding",perfectly combined the "dynamic cone speed", "stroke", and "crushing chamber type", and the optimized design of the crushing chamber, the wear of the lining plate is uniform, and the service life of the lining plate is improved. Reduce the replacement cost of the lining board, make the product's grain shape more perfect, greatly improve the product's primary pass rate, the pass rate can reach about 65%.


Concave and Mantle adopt filler-free design, easy to replace.


Adopting hydraulic adjustment discharge port for hydraulic chamber cleaning setting, the degree automation has been improved greatly.


Lubrication system designed according to the customer demand, adopt high viscosity low pressure large flow gear pump, safe and reliable and meet the industrial requirement of the crusher.


型号

Model

腔型

最大给料尺寸(mm)

Max. Feeding size

排料口调整范围(mm)

Adjustment range of discharge opening

处理能力(t/h)

capacity

功率(t/h)

power

重量(kg)

Weight

XRY1400C

粗碎 Coarse

235mm

25-65mm

210-530 t/h

220KW

25000kg

XRY1400Z

中碎 Medium

215mm

20-50mm

200-500 t/h

220KW

25000kg

XRY1650C

粗碎 Coarse

260mm

25-65mm

265-580 t/h

250KW

35000kg

XRY1650Z

中碎 Medium

240mm

20-50mm

240-550 t/h

250KW

35000kg

XRY1680C

粗碎 Coarse

300mm

22-65mm

330-750 t/h

280KW

50000kg

XRY1680Z

中碎 Medium

200mm

20-45mm

270-600 t/h

280KW

50000kg
