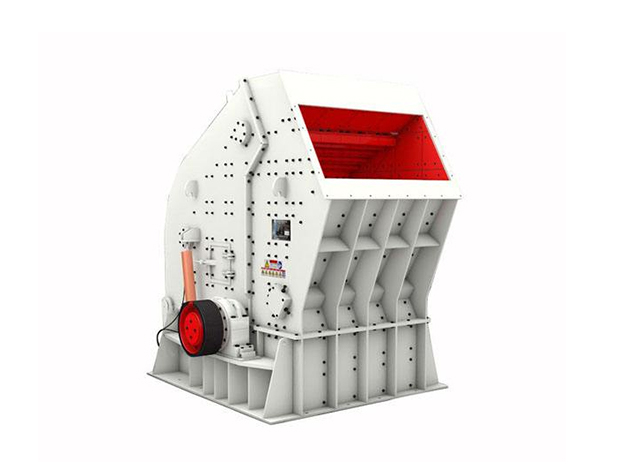

PFY European Impact Crusher

Truemax is a professional manufacturer of impact breakers, with many years of experience in technology and manufacturing. It has been sold to 125 countries and regions and has received excellent reviews.
Availability:
 PFY European Impact Crusher
  • PFY European impact crusher|TRUEMAX

  • TRUEMAX

PRODUCT INTRODUCTION

This series products generally used as secondary crushing equipment,also can according to the used requirements to change rotor and crushing cavity as primary crushing equirement,widely used highways,water conservancy,railways and airport etc.which operate field have high requirement for stone shape,it has the characteristics of large crushing ratio,high output,stable performance,good stone cube after crushing and few needles.

WORKING PRINCIPLE

The material is fed from the feed inlet and slides down the screen plate.The ore on the screen is crushed by the cemented carbide hammer on the high-speed rotating rotor during the falling process and flew in a tangential direction at a very high speed The counterattack plate makes the ore continue to be crushed.The counterattack plate knocks the ore back and collides with other ores thrown behind the rotor,so the ore is crushed by repeated impacts in the first crushing cavity.After the crushing chamber is crushed to a certain particle size,some ores are discharged into the second crushing chamber through the gap between the impact plate and the rotor,and continue to be repeatedly hit until the particle size becomes smaller before being discharged from the ore outlet at the bottom of the crusher.

PRODUCTION ADVANTAGES

Simple structure,small size,light weight and large production capacity,so the production cost is low.Large feed inlet,high crushing cavity,and high hardness suitable for materials.

The ore is crushed along the joint surface,so the power consumption is low and the efficiency is high;the crushing function is complete,the productivity is high,the wear of the machine parts is small,and the comprehensive benefit is high.

High chromium hammer,impact resistance,wear resistance and impact force;no key connection,convenient maintenance,economic and reliable.

The gap between the impact plate and the hammer can be easily adjusted,effectively control the output particle size,and the pa巾cle shape is good;with selective crushing,and the particle size of the crushed product is more uniform,and the shape is mostly cubic stones.It is widely used in bridge construction,high-speed road construction,wharf and airport construction.2 The ore is broken along the joint surface,so the power consumption is low and the efficiency is high.


Model

Specification(mm)

Capacity (t/h)

Weight(t)

PFY1210

Φ1150×960

570×990

90-110

15

PFY1214

Φ1150×1400

570×1430

132-160

19

PFY1315

Φ1300×1500

625×1530

160-200

25

PFY1320

Φ1300×2000

625×1830

200-250

30
