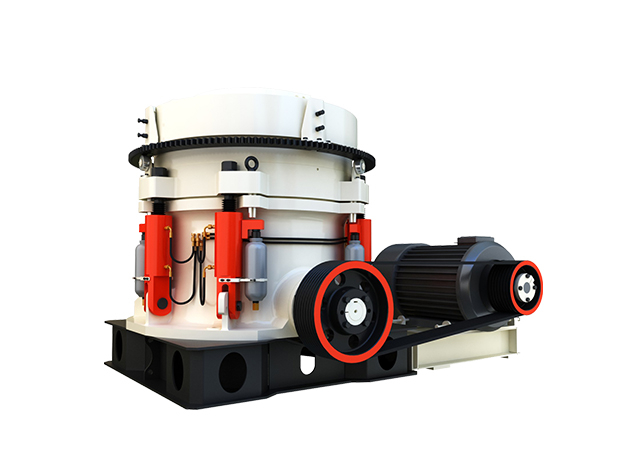

Multi-cylinder Hydraulic Cone Crusher|Gravel equipment-TRUEMAX
TRUEMAX
PRODUCT INTRODUCTION
Based on the traditional Multi-cylinder hydraulic cone crusher main shaft fixed,eccentric sleeve rotating structure around the main shaft and the lamination crushing principle,TRUEMAX breakthrough optimization of HPY Multi-cylinder hydraulic cone crusher structure,Significantly improved the performance and crushing capacity of the equipment.And the hydraulic lubricating system is design to ensure that the equipment operates more intelligently and reliably
WORKING PRINCIPLE
Multi-cylinder cone crusher is a typical crushing equipment for medium and fine crushed hard materials.When working,the moving cone swings along the inner surface.Near the fixed cone,the material is crushed by the squeezing and bending of the moving cone.Where it deviates from the moving cone,the crushed material falls from the bottom of the cone due to gravity.The crushing and unloading processes are carried out continuously along the inner surface.The lock protection cylinder is composed of several lock protection cylinders,over-iron protection accumulators,buffer accumulator groups and pipelines.The lock protection cylinder mainly plays the role of iron protection and cleaning the crushing cavity.Every two hydraulic cylinders are equipped with a buffer accumulator.When normal crushing,it is used to absorb the bounce impact of the adjustment ring caused by a few hard materials during buffering
PRODUCTION ADVANTAGES
PLC Integrated control system for easier operation
HPY hydraulic circular cone crusher using advanced PLO electrical system,continuously monitor the crusher and provide the alarms,display various operating parameters,The operator can understand the operation condition of the crusher in real time,so that the operation of the production line is simplified,the operation risk is reduced,and the safty performance of the crushing production line is improved.
HPY hydraulic circular cone crusher fixed on unique main shaft,based on the structure of the eccentric sleeve roating around the main shaft,further optimized the design of transmission component and lubrication&seal structure,The equipment has strong bearing capacity,greater installed power,higher efficiency and lower noise.
HPY hydraulic circular cone crusher use the principle of laminated to crush materials,have high crushing efficiency,low wear of wearing parts.After crushing,the finished production become to cubes,and the have high content of fine pa巾cles,which can meet the needs of some high-quality aggregates at this stage.
Equipped with multiple medium and fine crushing cavity types,only a small number of parts such as the corresponding cavity liner plate can be replaced,and the cavity type can be converted.Combined with the principle of lamination crushing,it can better meet the needs of medium and fine crushing processes.One machine for multiple uses.The crushing wall and rolling mortar wall are made of high manganese steel.Due to the change of the crushing cavity type and the protection of the material layer during lamination crushing,the wear is reduced.The general service life can be increased by 35%to 82%compared with the old-style structure cone crusher.
