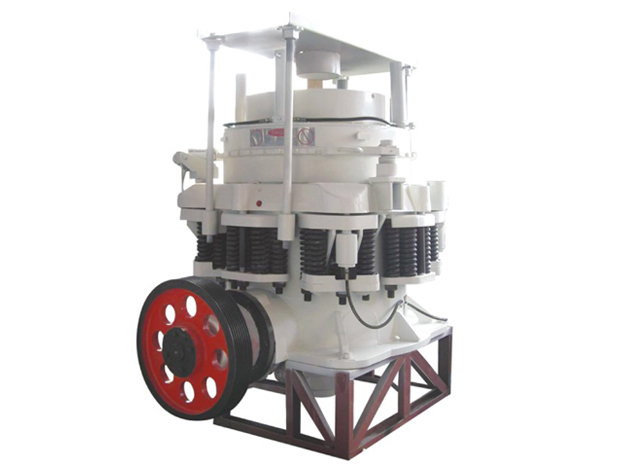

PSG Series Simmons Cone Crusher

TRUEMAX specializes in the production of PSG Series Simmons Cone Crusher and Hydrualic Cone Crusher, featuring high-end technology with one-button automatic start or automatic stop control to ensure correct start and close.

Availability:


Inquire

Model:
PSG series simmons cone crusher|Hydrualic cone crusher-TRUEMAX
Brand:
TRUEMAX

PRODUCT INTRODUCTION

PSG series Simmons cone crusher is widely used in metallurgical industry,building materials industry,road building industry,chemical industry and silicate industry,and is suitable for crushing all kinds of ores and rocks of medium and above hardness.Simmons cone crusher has the characteristics of huge crushing force,high efficiency,high handling capacity,low operating cost and easy adjustment.The quality material is selected,the structure design is reasonable,and the broken product size is even,thus reducing the cycle load.In the medium and large size crusher,the multi-cylinder hydraulic cavity cleaning system is adopted,which reduces the down time and operation labor intensity.And each crusher has a variety of cavity,users can choose different cavity according to different needs.

PRODUCTION ADVANTAGES

Multi-cylinder crushing chamber,flexible application and strong adaptability.

Support large crushing ratio;Easy operation,reduced down time,low power consumption and reasonable distribution

Reasonable parts selection and structure design,thus prolong service life,low maintenance cost of daily operation.

Related Products

Compound spring cone crusher|gravel equipment-TRUEMAX

Specifications	Type	Cavity type	Mine discharge opening adjustment range (mm)	Recommended minimum feeding size at the opening edge (mm)	Feed size (mm)	Processing capacity (T /h)	Main motor power (kW)
3'FT	PSGB-0910	standardthin	9-22	102	≤85	45-91	75
3'FT	PSGB-0917	standard coarse	13-38	175	≤150	59-163	75
3'FT	PSGB-0918	standard extra thick	25-38	178	≤150	118-163	75
3'FT	PSGD-0904	short head thin	3-13	41	≤35	27-90	75
3'FT	PSGD-0906	short head medium	3-16	76	≤65	27-100	75
3'FT	PSGD-0907	short head coarse	6-19	102	≤85	59-129	75
4.25'FT	PSGB-1313	standard thin	13-31	137	≤115	109-181	160
4.25'FT	PSGB-1321	standard medium	16-38	210	≤178	132-253	160
4.25'FT	PSGB-1324	standard coarse	19-51	241	≤205	172-349	160
4.25'FT	PSGD-1306	short head thin	3-16	64	≤54	36-163	160
4.25'FT	PSGD-1308	short head medium	6-16	89	≤76	82-163	160
4.25'FT	PSGD-1310	short head coarse	8-25	105	≤89	109-227	160
5.5'FT	PSGB-1620	standard type thin	16-38	209	≤178	181-327	250
5.5'FT	PSGB-1624	standard medium	22-51	241	≤205	258-417	250
5.5'FT	PSGB-1626	standard coarse	25-64	269	≤228	299-635	250
5.5'FT	PSGD-1607	short head thin	5-13	70	≤60	90-209	250
5.5'FT	PSGD-1608	short head medium	6-19	89	≤76	136-281	250
5.5'FT	PSGD-1613	short head coarse	10-25	133	≤113	190-336	250

Specifications	Type	Cavity type	Mine discharge opening adjustment range (mm)	Recommended minimum feeding size at the opening edge (mm)	Feed size (mm)	Processing capacity (T /h)	Main motor power (kW)
3'FT	PSGB-0910	standardthin	9-22	102	≤85	45-91	75
3'FT	PSGB-0917	standard coarse	13-38	175	≤150	59-163	75
3'FT	PSGB-0918	standard extra thick	25-38	178	≤150	118-163	75
3'FT	PSGD-0904	short head thin	3-13	41	≤35	27-90	75
3'FT	PSGD-0906	short head medium	3-16	76	≤65	27-100	75
3'FT	PSGD-0907	short head coarse	6-19	102	≤85	59-129	75
4.25'FT	PSGB-1313	standard thin	13-31	137	≤115	109-181	160
4.25'FT	PSGB-1321	standard medium	16-38	210	≤178	132-253	160
4.25'FT	PSGB-1324	standard coarse	19-51	241	≤205	172-349	160
4.25'FT	PSGD-1306	short head thin	3-16	64	≤54	36-163	160
4.25'FT	PSGD-1308	short head medium	6-16	89	≤76	82-163	160
4.25'FT	PSGD-1310	short head coarse	8-25	105	≤89	109-227	160
5.5'FT	PSGB-1620	standard type thin	16-38	209	≤178	181-327	250
5.5'FT	PSGB-1624	standard medium	22-51	241	≤205	258-417	250
5.5'FT	PSGB-1626	standard coarse	25-64	269	≤228	299-635	250
5.5'FT	PSGD-1607	short head thin	5-13	70	≤60	90-209	250
5.5'FT	PSGD-1608	short head medium	6-19	89	≤76	136-281	250
5.5'FT	PSGD-1613	short head coarse	10-25	133	≤113	190-336	250
